Installing Tomcat on Linux

By Allan Peda

Screencap of the Tomcat Demo Webserver Running By now I'm sure many of you my have the impression that unless you know Java, your résumé is severely handicapped, and even if you are fluent in Java, increasingly employers will ask if you know Java Server Pages (JSPs), and/or servlets. Fortunately, there is a free application server for Java Server Pages, and the related Java Servlets, it is called called Jakarta-Tomcat (hereafter referred to simply as Tomcat). I decided to download and install it, documenting my experiences for reference. I set up Tomcat on a vintage Pentium 2/200 running SuSE 7.2, however it appears that the steps described here should work with any recent distribution, as long as Java can compile the source.

Installation of the applet server involves the downloading and compilation of several packages in addition to the obvious need for Java and Tomcat. The following packages are necessary:

Required Packages to Set Up Jakarta-Tomcat
Java SDK 1.3.1   Sun
XML Parser Library 1.1   Sun
Secure Sockets for Java 1.0.2   Sun
Java Servlet API 3.2.3   Apache Foundation
Jakarta Ant 1.3   Apache Foundation
Jakarta Tomcat 3.2.3   Apache Foundation

Getting Java Installed

Installation of Java has been written up so frequently it's almost not worth repeating here, however for completeness I'll quickly run through the steps using RPM. I downloaded version 1.3 of the SDK (also known as the JDK) from the Java web site, but 1.4 is in Beta, and may be out by the time you read this. The notes for the Secure Sockets library indicate that 1.4 will include them, so the installation will be simplified somewhat.

For Linux, Sun's Java comes as a script wrapped around an RPM package, so that you must execute it and agree to the licensing before you get to actually install the RPM.  After unpacking the shell script to yield an RPM, follow the standard installation as root.

RPM install for Java (after unpacking)

    moby:~ > sudo rpm -Uv jdk-1.3.1.i386.rpm

I modified my path to include the location of the JDK, on SuSE you are advised to edit /etc/profile.local to accomplish this, although on other distributions one might edit /etc/profile directly. Note also the environmental variable for $JAKARTA_HOME, and $TOMCAT_HOME, we can ignore them for now, but you will need them soon enough as part of the installation procedure, so it's easier to set them now. Note that I did not initially set CLASSPATH, although you may want or need to. You'll see below the steps I took to make sure that Java could find the libraries.

Environmental Variables Needed



Installing the Java XML Parser Library

I installed the libraries for XML parsing by unzipping and copying the required libs to the library extensions directory (as root). I originally unzipped this file into my home directory. Where the files are initially unzipped doesn't matter, as long as java can find the installed libraries.

Copying the XML Parser Library jar files

    unzip; cd jaxp-1.1
    moby:~/jaxp-1.1 > sudo cp *.jar $JAVA_HOME/jre/lib/ext

Now, I like to do things step by step, so to check that your setup is able to find these new libraries, I suggest running an example program, which is included in the XML parser library.
If your Java Virtual Machine (JVM) cannot find the libraries, you will get an error like this:

Error Message

    moby:~/jaxp-1.1/examples/trax > java Examples
    Exception in thread "main" java.lang.NoClassDefFoundError:

If you see something like this, check the library locations (.jar files). I constantly ran into this problem, and I solved it by copying symlinking them to the correct location, or modifying $CLASSPATH.

Installing the Secure Sockets Library

You follow a similar procedure to install the Secure Sockets library copying the .jar libraries into the extensions directory.

Secure Sockets Library

    moby:~/jsse1.0.2/lib > sudo cp *.jar $JAVA_HOME/jre/lib/ext

I then edited the file /usr/java/jdk1.3.1/jre/lib/security/ to contain an entry for "" which was not in the default file.

Java Security Entry for SSL

Now, to test that javac could find these libs, I quickly typed up compiled the following piece of code, saved it as and compiled it:

Testing Secure Sockets

    public class TestSSL {
	public static
	    void main(String [] arstring) {
	    try  {
		new"https://" + arstring[0] + "/").getContent();
	    } catch (Exception exception) {

We compile to bytecode Using the standard javac invocation:

      moby:~/jsse1.0.2 > javac
Once again, if java could not find the libray, then I would get a java.lang.NoClassDefFoundError error, and the code would not compile to yield the TestSSL.class bytecode file.

After compiling with javac to bytecode, I wanted to test the ssl library by connecting to an SSL site (sourceforge). Here it is necessary to specify the use of SSL on the command line, or as Sun's install docs say, "add the handler's implementation package name to the list of packages which are searched by the Java URL class". I think of this as analogous to linking the math library using -lm as a linker option to gcc, except it's done at runtime.
Explicitly Specifying the Handler
    moby:~/jsse1.0.2 > java \ \
    moby:~/jsse1.0.2 > echo $?
    moby:~/jsse1.0.2 > 0

As an aside, if I did not include this argument to the JVM, I would get the following error:

Unknown Protocol Error Message

    moby:~/jsse1.0.2 > java TestSSL unknown protocol: https
	    at TestSSL.main(

So now we have Apache, Java, Java libraries for XML and Secure Sockets, and we can install Jakarta-Tomcat. Not quite yet, we still need Ant, a Java "make" replacement, and the Servlet API.

Installing Ant

Despite the fact that we not quite ready to install the Jakarta-Tomcat distribution, the next step does involve installing some essential components of Jakarta, so we need to modify our environment to accommodate the package. We do this by creating the environmental variable $JAKARTA_HOME which was briefly introduced with the $JAVA_HOME variable. I decided to put Jakarta under /opt, simply because there was space there, and also I try to put anything I build under /opt, leaving /usr and /usr/local for the distribution RPM to decide. Now we are getting to First, think of a place where you want to install Ant.

First download and unpack it. In my example I downloaded the compressed source into my home directory, then changed to the $JAKARTA_HOME directory. I then unpacked it into the $JAKARTA_HOME directory, letting tar choose the directory name.

In order to comply with the requirement that jakarta-ant be in a directory called $JAKARTA_HOME/jakarta-ant I symlinked the build directory to the correct directory name. Then I cd'd into the jakarta-ant/ directory and ran the script as root. After you run this script, there should be a new build/lib/ subdirectory containing the libraries just built:

Building Jakarta - Ant

    moby:~ > cd $JAKARTA_HOME
    moby:~/opt/jakarta> tar xzf ~/jakarta-ant-1.3-src.tar.gz
    moby:/opt/jakarta > sudo ln -s jakarta-ant-1.3/ jakarta-ant
    moby:~/opt/jakarta > cd jakarta-ant
    moby:/opt/jakarta/jakarta-ant > sudo sh
    moby:/opt/jakarta/jakarta-ant > ls -1 build/lib/

Output of the Ant bootstrap script

Installing the Servlet API

Next we install the servlet API, once again symlinking the real extract directory to the required directory name:

Building the Servlet API

    moby:/opt/jakarta > sudo tar xvzf \
    > ~/jakarta-servletapi-3.2.3-src.tar.gz
    moby:/opt/jakarta > sudo ln -s jakarta-servletapi \
    > jakarta-servletapi-3.2.3-src
    moby:/opt/jakarta > cd jakarta-servletapi
    moby:/opt/jakarta/jakarta-servletapi >

I was ready to build the jakarta servlet libraries, using the script supplied. But it was at this point I had to "cheat" in order to resolve two library related errors:

Error messages due to libraries not being found

    moby:/opt/jakarta/jakarta-servletapi > sudo sh dist
    Exception in thread "main" java.lang.NoClassDefFoundError:

    /opt/jakarta/jakarta-servletapi-3.2.3-src/build.xml:31: Cannot use
    classic compiler, as it is not available A common solution is to set
    the environment variable JAVA_HOME to your jdk directory.

The error messages look different, but are really both related to libraries not being found. The first is related to ant.jar, the second is due to a "lost" tools.jar library. To solve these problems I created two symlinks under $JAVA_HOME/jre/lib/ext to allow Java to find the newly created ant.jar and tools.jar libraries.

Symlinks set to allow Java to find "lost" Libraries

    $JAVA_HOME/jre/lib/ext/ant.jar -> /opt/jakarta/jakarta-ant/build/lib/ant.jar
    $JAVA_HOME/jre/lib/ext/tools.jar -> /usr/java/jdk1.3.1/lib/tools.jar

Alternately I know of two other options that should work (but did not for me):

  1. modify the $CLASSPATH environmental variable to include tools.jar and ant.jar explicitly.
    export CLASSPATH=$JAVA_HOME/lib/tools.jar:$ANT_HOME/lib/ant.jar
  2. Explicitly specify the "-classpath" option when calling java. This is probably impractical for any large run script.

After creating these symlinks, the following command ran perfectly:

Building Tomcat

    moby:/opt/jakarta/jakarta-servletapi > sudo sh dist

Here is the output of servlet build script

Building Tomcat

Finally, the moment of truth, building the Jakarta-Tomcat package. I still had one error,

Error messages due to bin directory not being found

    moby:/opt/jakarta/jakarta-tomcat > sudo sh ./ dist
    Buildfile: build.xml
    /opt/jakarta/jakarta-tomcat-3.2.3-src/build.xml:32: /opt/jakarta/jakarta-ant-1.3/bin not found.
    Total time: 2 seconds

The error message, unlike most, is obvious. After symlinking the bin directory in jakarta-ant, it ran perfectly.

Symlink so the binaries could be found

    moby:~ > cd /opt/jakarta/jakarta-ant
    moby:/opt/jakarta/jakarta-ant > sudo ln -s bootstrap/bin .

Here is the output of the Tomcat build script

At this point you can cd to $JAKARTA_HOME/dist/tomcat/bin and run .

Starting Jakarta-Tomcat

    moby:/opt/jakarta/dist/tomcat/bin > sudo ./
    Using classpath: /opt/jakarta/build/tomcat/classes:/opt/jakarta/build/tomcat/lib
    allan@moby:/opt/jakarta/build/tomcat/bin > 2001-07-20 03:13:50 - ContextManager:
     Adding context Ctx( /examples )
    2001-07-20 03:13:50 - ContextManager: Adding context Ctx( /admin )
    Starting tomcat. Check logs/tomcat.log for error messages
    2001-07-20 03:13:50 - ContextManager: Adding context Ctx(  )
    2001-07-20 03:13:50 - ContextManager: Adding context Ctx( /test )
    allan@moby:/opt/jakarta/build/tomcat/bin > 2001-07-20 03:13:53 - \
    PoolTcpConnector: Starting HttpConnectionHandler on 8080
    2001-07-20 03:13:53 - PoolTcpConnector: Starting Ajp12ConnectionHandler on 8007

Similarly with shutdown:

Stopping Jakarta-Tomcat

    moby:/opt/jakarta/dist/tomcat/bin > sudo ./
    Using classpath:
    /opt/jakarta/build/tomcat/classes:/opt/jakarta/build \
    /tomcat/lib/servlet.jar:/opt/jakarta/build/tomcat/lib/test:/usr/java \
    Stop tomcat
    2001-07-20 03:15:47 - ContextManager: Removing context Ctx( /examples )
    2001-07-20 03:15:47 - ContextManager: Removing context Ctx( /admin )
    2001-07-20 03:15:47 - ContextManager: Removing context Ctx(  )
    2001-07-20 03:15:47 - ContextManager: Removing context Ctx( /test )

Congratulations! After running the startup script, you can view the greeting screen by pointing your browser at the web server's machine, port 8080, unless modified.

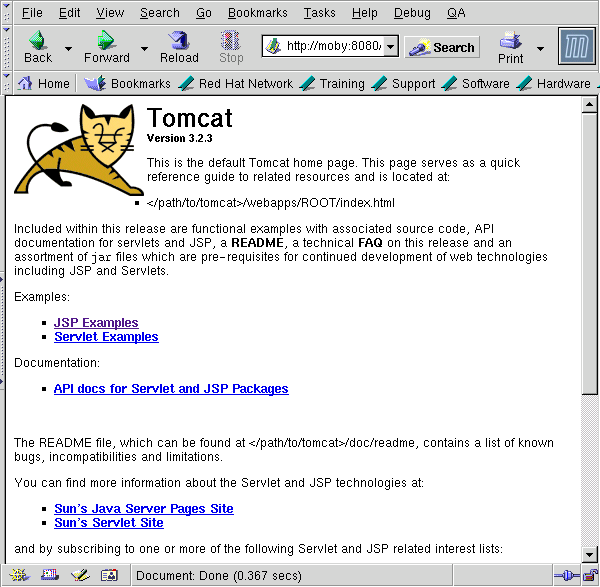

Screencap of the Tomcat Demo Webserver Running

Jumping to the various pages supplied you can then check out the screen shots of the example Servlets and Java Server Pages. This is a bit of a tease, because you are tempted to try to run the demos from the screencaps, but still it's nice to see what you can expect when you actually get Jakarta Tomcat Running.

It works!

At this point you have two servers running: a simple web server listening on port 8080, and a servlet container application server listening on port 8007. The first thing I am concerned with is the fact that everything was set up as root. Supporting documentation suggests running the server as "nobody", but I felt that a special jakarta user analogous to a database user would be a good idea because of the special environmental variables that are set. Having a dedicated jakarta user just for servlets would then allow configuration to be kept in the ~jakarta home directory. This would be even more useful if there were other versions of java installed on the system.

Anyhow this is all fairly simple. After the jakarta user is set up as shown, you can run jakarta as that user, and since it runs from a nonpriviliged port there should be no problem there. Still I thought that the permissions could be tightened up more so that only the jakarta user can run the servlet container, so I shutdown the server, and changed the permissions as follows:

Tightening Up Permissions

    moby:/opt/jakarta > sudo $TOMCAT_HOME/bin/
    moby:/opt/jakarta > sudo /usr/sbin/groupadd jakarta
    moby:/opt/jakarta > sudo /usr/sbin/useradd -g jakarta -c \
    > "Java Server Pages" jakarta
    moby:/opt/jakarta > sudo mkdir /home/jakarta
    moby:/opt/jakarta > sudo chown jakarta.jakarta /home/jakarta
    moby:/opt/jakarta > sudo chown -R jakarta.jakarta $JAKARTA_HOME
    moby:/opt/jakarta > sudo su - jakarta
    moby:~ > cd $JAKARTA_HOME

Naturally you could set the password too, but since root can get in anyhow, I didn't bother. I decided to tighten some permissions by using this script. Now only user jakarta can start and stop the servlets, and Java server pages. The environmental variables set in /etc/profile or /etc/profile.local can now be set instead in ~jakarta/.profile or ~jakarta/.bash_profile leaving other users free to choose other java versions and reducing the count of environmental variables.

Now that Tomcat is running, you can experiment with altering the stock configuration. There are many options here, and of course since Jakarta is a project by the Apache foundation, it is designed to integrate easily with Apache. Take a look at the users guide included with the source, it provides some good examples, and you can also consult the project web site. XML is the native format of it's configuration file, and you'll be getting a crash course in XML, it you haven't learned about it yet. To get you started, see the main configuration files, "server.xml" and "web.xml".

So welcome to the wild world of Java Server Pages and Servlets. You'll find that it's a very mature in interesting technology. Good luck.

  1. Linux as an Application Server -- The Tomcat Way
    by Chris Bush
  2. Sun's Java Software Development Kit 1.3.1
  3. Java Secure Sockets Extension (JSSE) version 1.0.2 or later
  4. Java API for XML Parsing implementation 1.1
  5. Jakarta Tomcat download (includes Jakarta Tomcat, ANT, Servlet API)
    Note that Ant is a separate project, but the servlet API source is in the same download directory as the Jakarta-Tomcat source.
  6. Build secure network applications with SSL and the JSSE API
    by Todd Sundsted
  7. The Ant FAQ:
  8. The Tomcat Users Guide

Allan Peda

Allan has been enjoying Linux since about 1995, discovering Perl shortly thereafter. Currently he is doing Linux consulting work in the NYC area. He enjoys surfing, sailing, and dreams of owning a charter boat in tranquilo Costa Rica.
